Product description

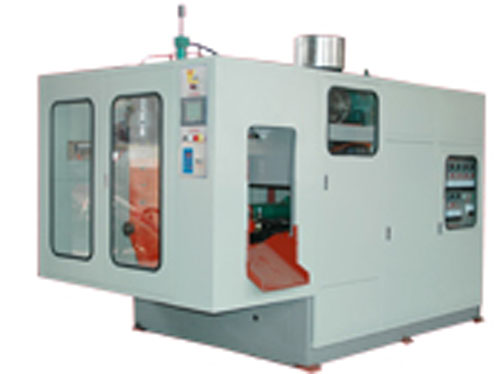

SJZK-0.5-5L automatic high-speed hollow molding machine is a very popular blow molding machine. The equipment is processed by high-end advanced materials and the latest control system. In order to better adapt to the needs of customers, the hollow volume of the equipment can be scheduled according to the size of use, and the products are fully automatic high-speed equipment. It is able to operate fully automatically and efficiently, bringing better benefits to customers.



Related Information

The device has a wide range of functions in daily life, and the formation of bottles and cans, which are common in our daily life, is formed by the blow molding of the device.

SJZK-0.5-5L automatic high-speed blow molding machine equipment, the size of the different types of blow molding equipment expanded according to the user's use, the product can be used to produce chemical products, lubrication products and some other packaging products, and can Processing of small injection molded products such as the production of soft bags.



Equipment production process

At present, the production process of our common blow molding machines is almost the same. It is nothing more than special processing on the details of the equipment. According to different purposes, the general equipment is based on the basic injection device, mold device, The control device and the hydraulic device are composed of four basic devices.

The detailed production blow molding production process is:

1. High temperature action, fusion plastic;

2. The mold clamping selects the mold of the product and is firmly fixed;

3. Add the melted plastic to the injection device;

4. Under the hydraulic device, test the injection device, and then let the mold blow into the plastic;

5. After the product has condensed, remove the product.



Equipment parameter table

容量（******容量）	5L	擠出口范圍	25-100 mm
生產能力（空循環）	800模/ h*2	模具厚度范圍	240 ~ 300 mm
開合模速度	600mm/sec	模具******平面尺寸	500×430 mm（寬X高）
螺桿直徑	100 mm	鎖模力	150 KN
螺桿長徑比	25（L/D）	機器外形尺寸	4.0×3.0×2.8m（長X寬X高）
塑化能力	295Kg/h	機器重量	14500Kg
